2-Position, 5-Port Solenoid Valve

1. Basic Part Information

• Part Name: 2-Position, 5-Port Solenoid Valve (commonly referred to as a "split-shift valve" or "pneumatic control valve" in the heavy-duty truck transmission field)

• Brand: ZF (ZF Friedrichshafen AG), a renowned German automotive component and transmission manufacturer

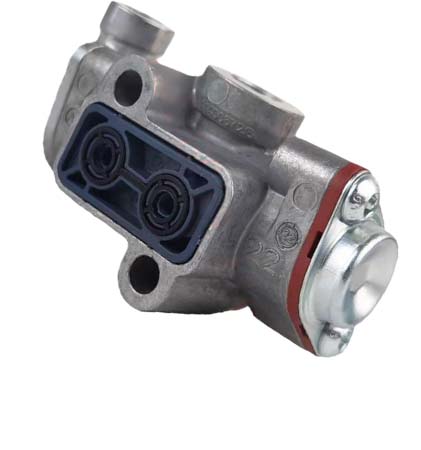

• Appearance Features:

  • Port Layout: Two larger threaded ports on one side (typically for inlet and outlet air lines), and a black multi-pin electrical connector on the other side (for receiving electrical signals).

  • Valve Body Material: Die-cast aluminum with surface machining marks — lightweight and corrosion-resistant.

  • Sealing: Red sealing rings at the ports ensure pneumatic system airtightness.

• Common Model Numbers: ZF offers many variants. Common examples include 0501219848, 0501219310, 0501219309, etc. Different model numbers may correspond to different operating voltages (e.g., 24V DC) or port sizes.

2. Function & Role

• Pneumatic Direction Control: This solenoid valve uses magnetic force generated by energizing its solenoid coil to move the spool between two positions ("open" and "closed"), thereby changing the direction of compressed air flow.

• Transmission Shift Actuation: In heavy-duty truck transmissions equipped with pneumatic assist or AMT (Automated Manual Transmission) — such as ZF 16S series or Fast Gear auto-shift models — this valve converts electrical signals from the cab shifter or TCU (Transmission Control Unit) into pneumatic signals. These actuate shift cylinders inside the transmission, enabling range shifting (split shifts) or main gear changes.

• Meaning of "2-Position, 5-Port":

  • 2-Position: The spool has two working positions (energized and de-energized).

  • 5-Port: The valve body has five air ports (typically one inlet port P, two working ports A and B, and two exhaust ports R and S).

3. Applicable Scenarios & Common Failure Symptoms

• Applicable Vehicles / Transmissions:

  • Primarily fits ZF brand transmissions, such as ZF 16S2530 TO, ZF 12AS2541 TO, etc.

  • Also commonly used in Fast Gear automatic transmissions or other heavy-duty transmissions with pneumatic controls.
