Fast Gear (FAST) 9-Speed Transmission Auxiliary Section Synchronizer Assembly

1. Basic Part Information

• Part Name: Auxiliary Section Synchronizer Assembly (Range Shift Synchronizer Assembly)

• Compatible Transmissions: Mainly used in Fast Gear 9-speed series transmissions (e.g., 9JS119, 9JS135, 9JS180, etc.), and may also be compatible with some other brand 9-speed transmissions based on Fast Gear technology.

• Specific Model References:

  • A-5065 or A-C09005: Common industry code or OEM internal part number for this synchronizer assembly.

  • JS119-1701180: One of the common official part numbers for a Fast 9-speed auxiliary section synchronizer.

  • JS135-1701180: Auxiliary section synchronizer for higher torque versions (e.g., 9JS135).

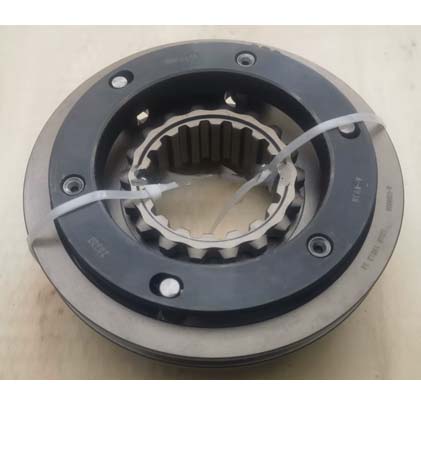

• Appearance Features:

  • Outer Hub (Hub): The silver-gray ring-shaped main body in the image, featuring three evenly spaced lugs (for installing retaining rings) and three bolt holes (for connection to gears or shift forks).

  • Inner Engagement Sleeve: The part with straight teeth in the middle, responsible for engaging with the auxiliary section gears.

  • Tapered Friction Surfaces (Cones): Although hidden in this view, the inside of the outer hub contains copper-based friction surfaces (cones) for smooth shifting.

  • Sliders & Springs: Includes sliders to actuate the friction surfaces and return springs.

2. Function & Role

• High/Low Range Shifting: Fast 9-speed transmissions typically use a "main box (9 speeds) + auxiliary section (2 speeds: high/low)" design. This synchronizer is installed in the auxiliary section and is responsible for shifting between direct drive and overdrive (or low/high range).

• Smooth Shifting: When the driver operates the range selector on the shift lever, the synchronizer uses friction to first equalize the rotational speed of the inner and outer components — allowing for clash-free, smooth, and noise-free gear engagement.

• Driveline Protection: By eliminating direct, un-synchronized gear engagement, the synchronizer reduces the risk of gear tooth damage and extends transmission lifespan.
