Sinotruk HOWO T7H and SITRAK Clutch Slave Cylinder (Clutch Booster Cylinder)

1. Basic Part Information

• Part Name: Clutch Slave Cylinder / Clutch Booster

• Applicable Models: Mainly suitable for Sinotruk HOWO T7H, SITRAK C7H, and other high-end heavy-duty truck platforms — typically used in conjunction with MAN engines and HW series transmissions.

• Brand / Supplier:

  • The valve body is marked with the WABCO logo. Sinotruk's high-end models extensively use WABCO pneumatic and hydraulic control systems. This clutch slave cylinder is an OEM or WABCO-manufactured genuine part, known for reliable quality.

• Common Part Numbers for Reference:

  • Common part numbers include WG9725230041, WG9725230051, WG9725230052, etc. (Exact match depends on vehicle nameplate and production year.)

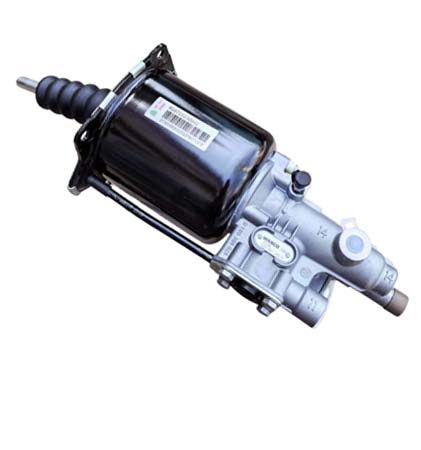

• Appearance Features:

  • Black Cylindrical Section: Reservoir/cylinder body containing internal piston and seals.

  • Silver Valve Body Section: Integrated solenoid valve or pneumatic control valve group (with electrical connector) for regulating assist level or exhaust.

  • Pushrod & Clevis: Front end features a ball stud or fork arm connection linking directly to the transmission's clutch release fork.

2. Function & Role

• Assisted Shifting: Heavy-duty truck clutches typically require substantial pedal effort. The clutch slave cylinder uses compressed air (or hydraulic pressure) from the engine intake manifold to provide assistance — significantly reducing driver pedal effort for smooth shifting.

• Power Disconnection: When the driver depresses the clutch pedal, the master cylinder sends hydraulic pressure to the slave cylinder. The slave cylinder pushes the release fork, disengaging the clutch pressure plate from the driven disc — cutting power transmission from the engine to the transmission, allowing smooth gear engagement.

• Smooth Engagement: When the pedal is released, the slave cylinder controls the pressure plate to engage smoothly, ensuring jerk-free starts and shifts.

3. Common Failures & Maintenance

• Fluid / Air Leakage: Worn seals or piston damage can cause hydraulic fluid or compressed air leaks. Symptoms include a heavier clutch pedal, longer travel (engagement point changes), or inability to disengage the clutch completely.

• Loss of Assist: Internal valve failure or blocked air passages can eliminate power assist, requiring excessive driver effort — affecting comfort and safety.

• Abnormal Noise or Sticking: Contaminants or poor lubrication can cause metallic knocking sounds or sticky operation — requiring cleaning or replacement.

• Maintenance Tips:

  • Periodically inspect the slave cylinder and lines for leaks.

  • If assist weakens or pedal becomes heavy, first bleed air from the hydraulic/pneumatic system.

  • Always use genuine or high-quality matching aftermarket parts to avoid incorrect throw or premature wear.
